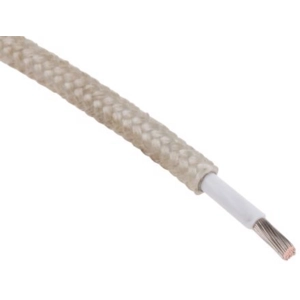

1.5mm WHITE HEAT RESISTANT HIGH TEMPERATURE WIRE CABLE (sold per meter)
Technical data
●Special-silicon single core with higher heat-resistance range
●Temperatue range -60°C to +180°C (for short time +220°C)
●Temperature limit at the conductor in operation +180°C
●Nominal voltage U0/U 300/500 V
●Test voltage 2000 V
●Breakdown voltage min. 5000 V
●Minimum bending radius15x core Ø (SID only for permanent installation)
●Radiation resistanceup to 20 x 106cJ/kg (up to 20 Mrad)
